Attain Maximum Compatibility Between Your HDMI Sender and Receiver (Source and Display)

EDID accomplishes a handshake to ensure the correct information is being passed from your source to display to ensure the best possible audio and picture is being delivered. Some video extenders, switches, and splitters block EDID in transmission, causing some problems with compatibility. This EDID emulator will make sure this communication is not lost and the sync between sender and receiver is perfect.

• EDID Emulator – Use EDID (Extended Display Identification Data) to ensure audio & video signals compatibility between the source and display to prevent audio/video loss
• COMPREHENSIVE EDID MODES –17 audio & video EDID options, including user programmable EDID. EDID from a display can be read and recorded and more. Firmware upgradable for future expansion
• HDMI 2.0 STANDARD – Supports up to 4K @60Hz (YUV 4:4:4 8-bit), HDR 4K @60Hz (YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps and CEC Pass-through. Supports LPCM 7.1 audio, Dolby TrueHD, Dolby Digital
• REPEATER/RETIMER – Amplifies and equalizes HDMI signals to provide high quality audio/video and makes multiple layers of cascading possible
• Made in Taiwan and HIGH QUALITY COMPONENTS – FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. Contact us at "www.gofanco.com/contacts" if you have any questions or concerns

EDID Copying and Ghosting

EDID Copying

• Allows you to save EDID settings from your display for easy access in a specific set up
• Effective for issues caused by third-party devices such as HDMI extenders, switches, and splitters

EDID Ghosting

• Allows emulation of known EDID settings to deliver identification data to your source
• Effective for use with older devices that don't output EDID information; IE Legacy equipment

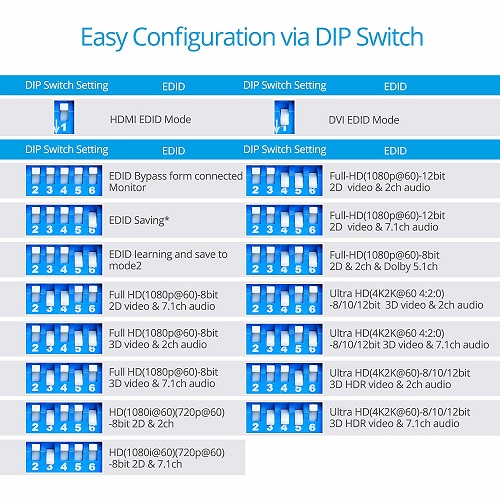

17 Audio and Video EDID Settings

Includes user programmable EDID, pre-recorded EDID, and read and recorded EDID options

Common Use Cases

• Resolve EDID issue coming from the use of HDMI extenders, switches, or splitters between sources and displays (sender and receivers)
• Confirm compatibility between new and legacy source and display equipment with EDID emulation

Features & Specifications
- HDMI 2.0a compliant
- HDCP 2.2 compliant
- 17 audio & video EDID options, including user programmable EDID. EDID from a display can be read and recorded and more
- Firmware upgradable for future expansion
- Supports 4K @60Hz (YUV 4:4:4 8-bit)
- Supports HDR 4K @60Hz (4:2:0 10-bit)
- Supports LPCM 7.1 audio, Dolby TrueHD, Dolby Digital
- Video bandwidth: 18Gbps (Single-link 600MHz)
- CEC Pass-through
- ESD protection
- Power adapter is not required when an HDMI source can provide the standard 5V bus power output
- Country of origin: Taiwan
- Regulatory approvals: FCC, CE, RoHS

What's in the Package
- Prophecy 4K EDID Emulator
- Power adapter
- Rubber pads (4)
- Screw kit
- Quick installation guide

Warranty & Support
- Limited One-Year Warranty and Lifetime Product Support
