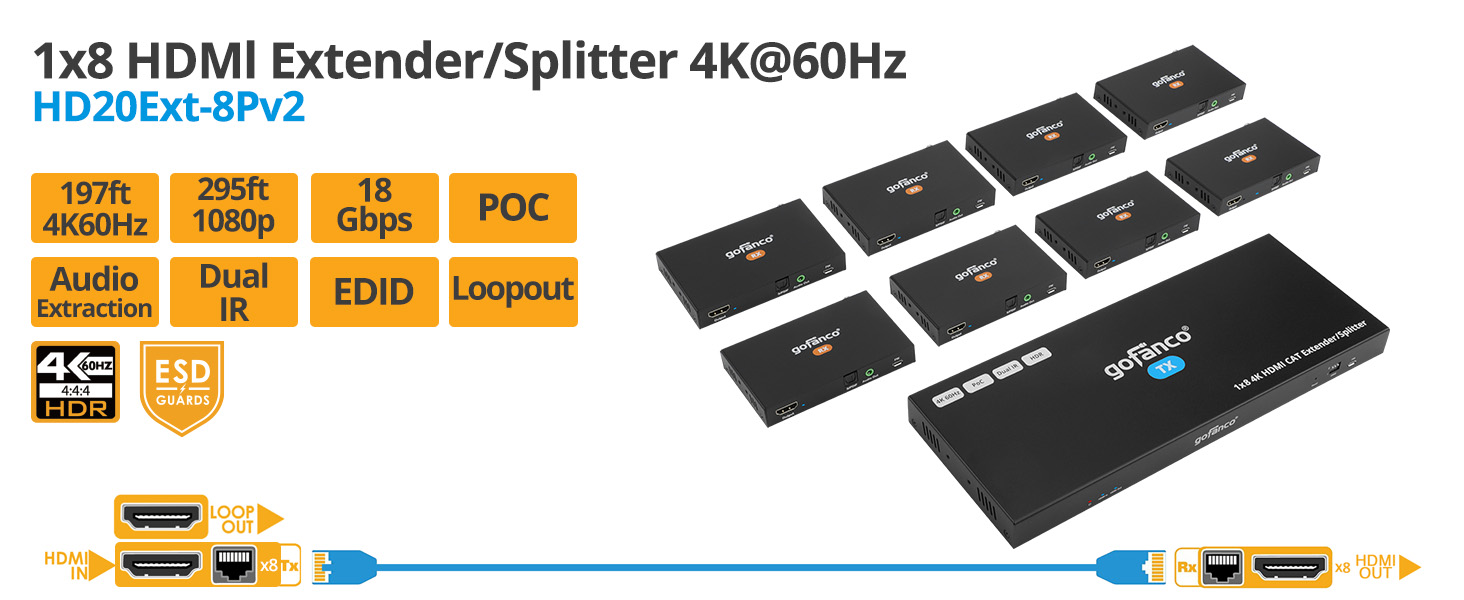

1x8 HDMI 2.0 CAT Extender/Splitter – 60m (HD20Ext-8Pv2)

Features

1x8 HDMI EXTENDER/ SPLITTER

Extend and split one HDMI source to eight CAT6/7 & one HDMI outputs simultaneously at near zero latency

---

RESOLUTION & TRANSMISSION

Supports 4K resolution at 60Hz with 4:4:4 chroma subsampling, HDR10, and HDCP 2.2 encryption, Can extend up to 197ft (60m) at 4K60Hz and up to 295ft (90m) at 1080p60Hz over CAT6/7 cables

---

AUDIO FORMATS

Supports 7.1 channel HD audio pass-through for both TX (transmit) and RX (receive) HDMI outputs

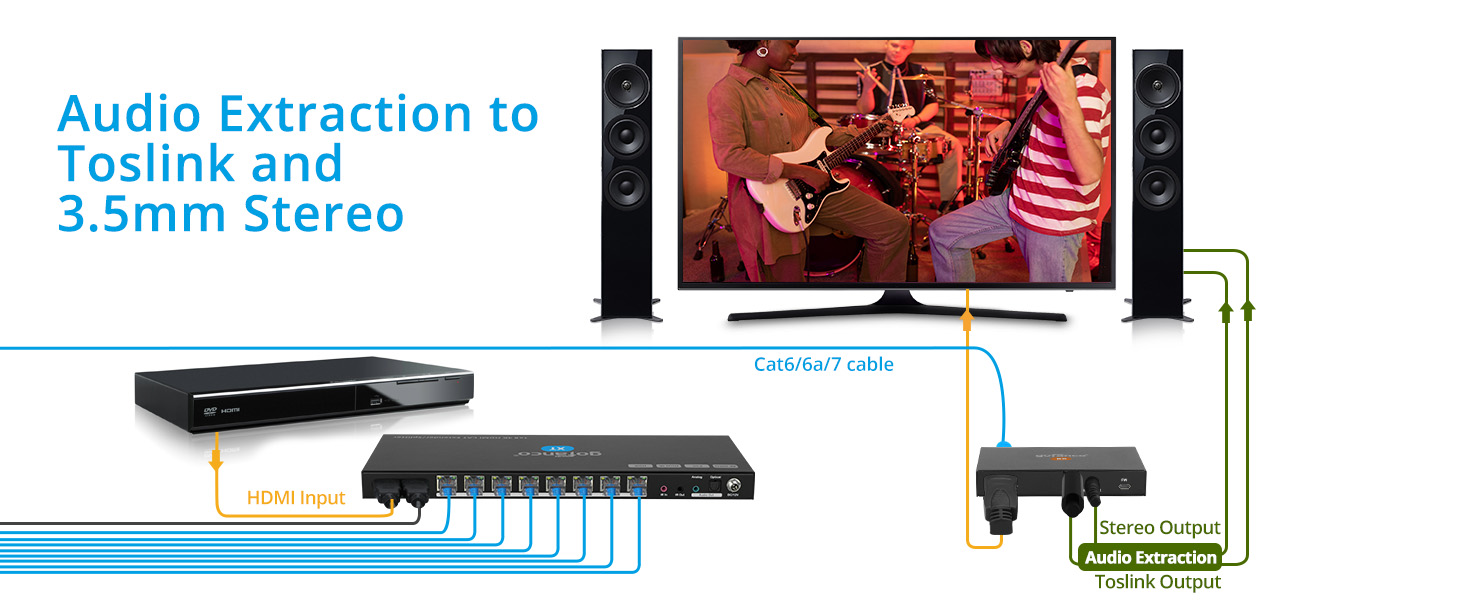

Extracts audio formats including LPCM 2.0/5.1, Dolby Digital, DTS 5.1, Dolby Digital+, and Dolby TrueHD to Toslink output and 3.5mm analog audio at both TX and RX points

---

ADVANCED FEATURES

HDMI loopout feature for connecting a local display

Bi-directional IR (Infrared) for remote control functionality

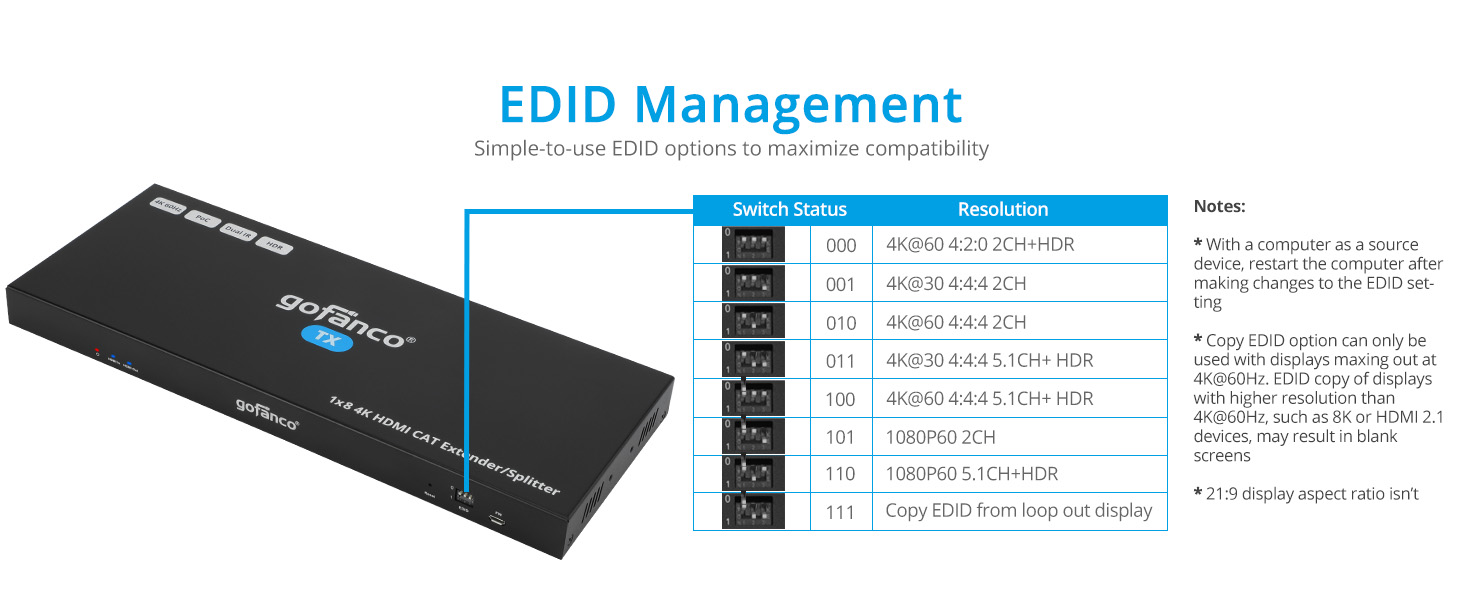

EDID management to ensure proper display resolution recognition

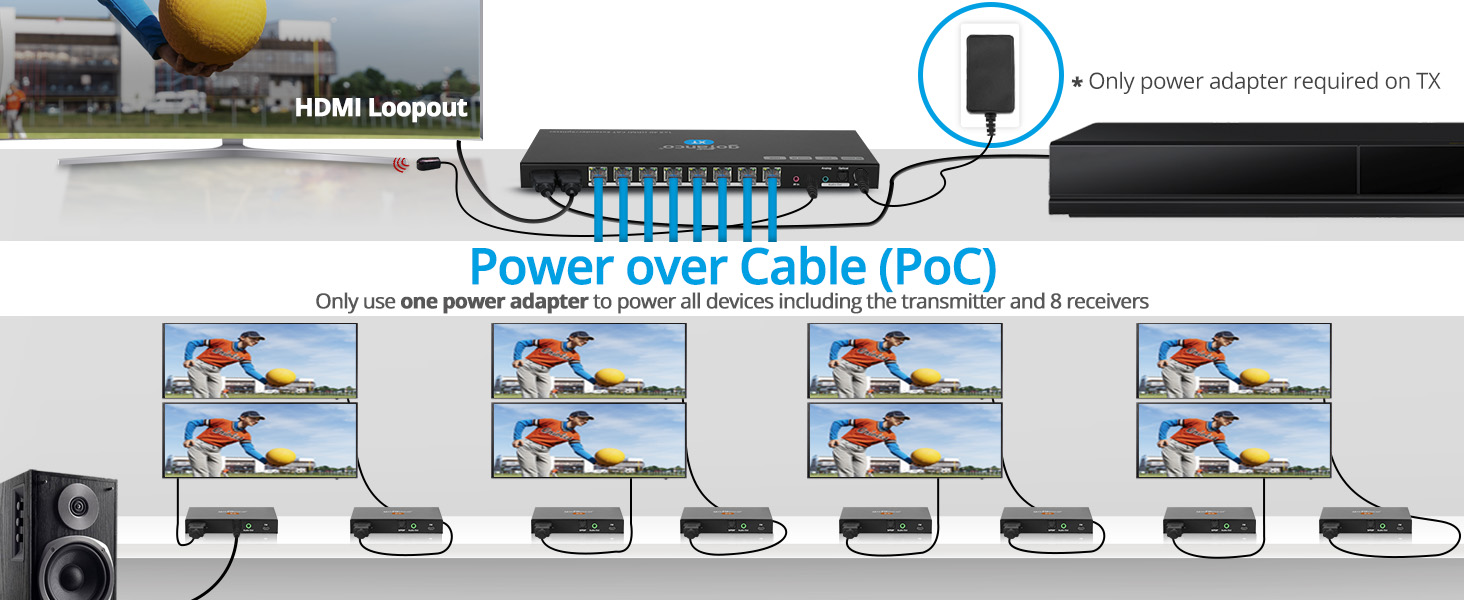

PoC (Power over Cable) – the RX unit is powered by the TX unit

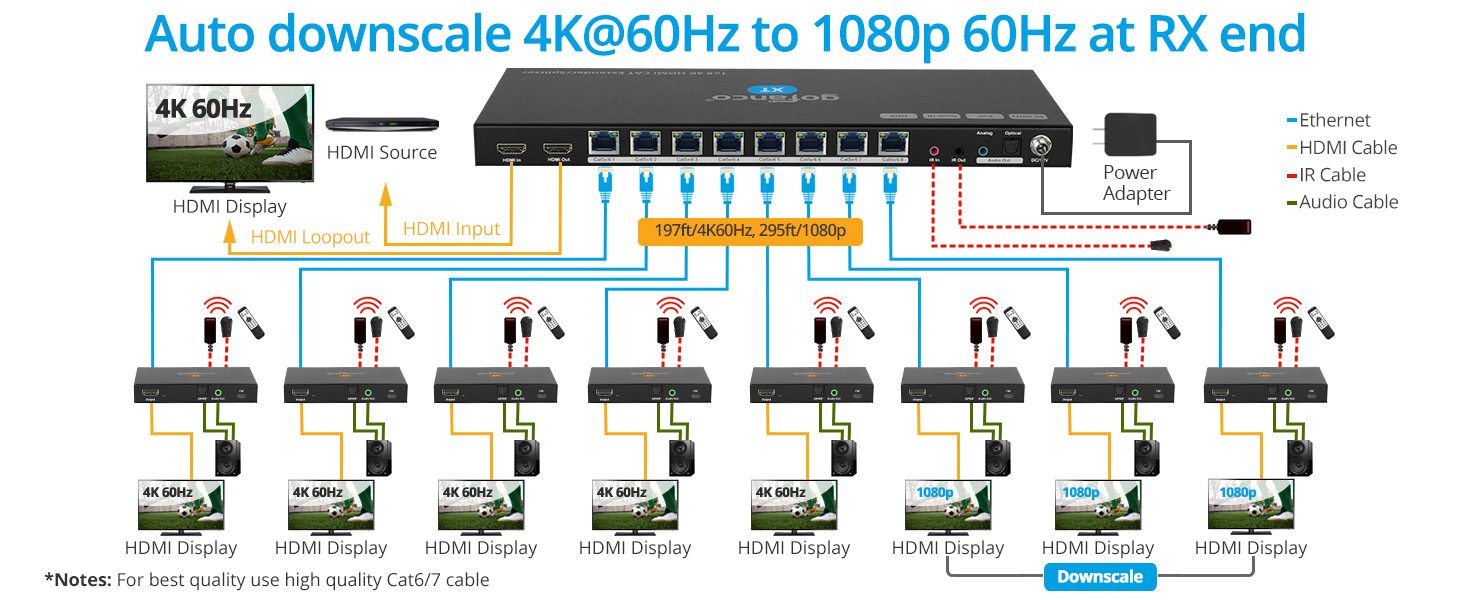

Auto-downscale 4K60Hz to 1080p60Hz at the RX end if needed

---

SIMPLE INSTALLATION

No driver required; Surface-mountable metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley

---

Specifications

- Video bandwidth: 18Gbps
- Video resolutions:
- Input 720p/1080p/4K60Hz
- Output 480i/576i/480p/576p/720p/1080p/4K60Hz
- HDCP 2.2/1.4 compliant
- Extends up to 197ft/60m at 4K60Hz and 295ft/90m at 1080p 60Hz via a single CAT6/7 cable
- HDMI Audio: Supports 7.1 HD Audio pass-through
- Supports audio extraction to Toslink output for LPCM2.0/5.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD and to 3.5mm analog audio for PCM 2.0 ch
- Auto downscale 4K@60Hz to 1080p 60Hz at RX end
- Bi-directional IR
- EDID management
- HDMI loopout for a local display
- One-way PoC function (RX powered by TX)
- Micro USB firmware updating
- Housing: Surface mountable metal enclosure
- Dimensions:
- Transmitter (TX): 12.46”(W) x 0.94”(H) x 4.86”(D)
- Receiver (RX): 4.34”(W) x 0.71”(H) x 2.69”(D)
- Weight: TX: 1.61 lbs / RX: 0.54 lbs
- Country of origin: China
- Regulatory approvals: FCC, CE, RoHS

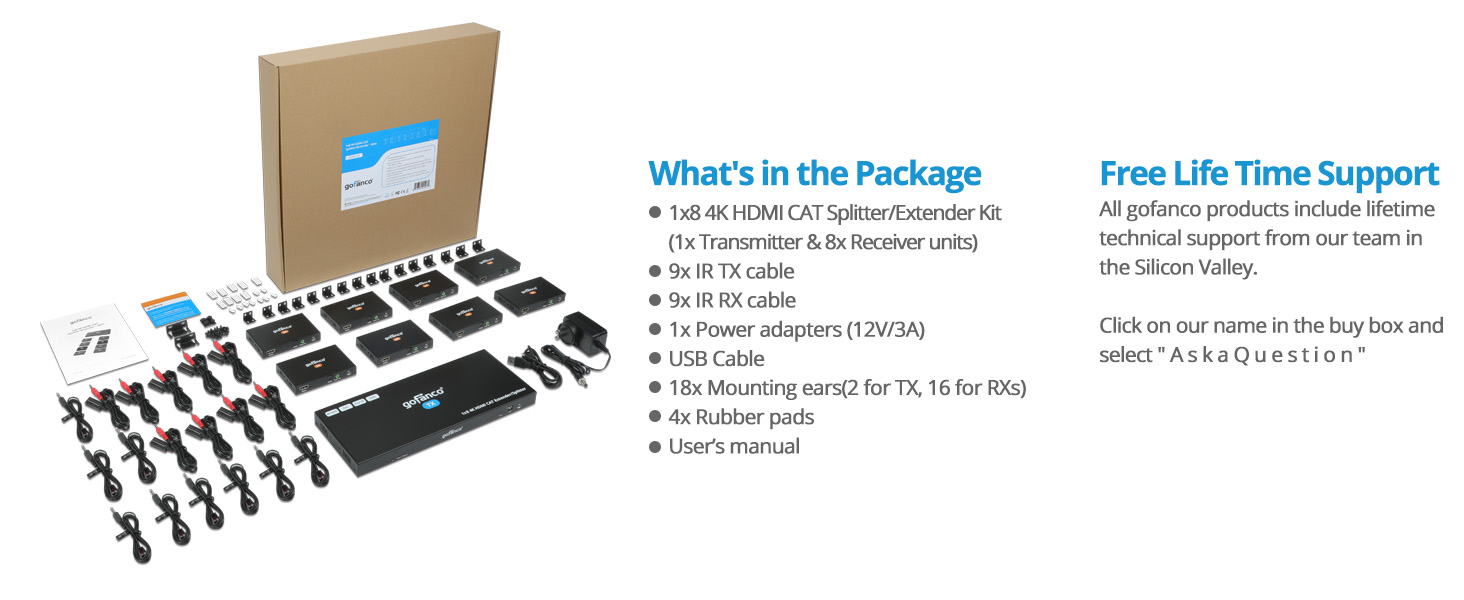

What's in the Package

- 1x8 HDMI 2.0 CAT Extender/Splitter – 60m (1 TX & 8 RX’s)
- IR Blaster cable (9)
- IR RX cables (9)
- Power adapters (1x 12V/3A)
- Surface mount accessories (2 for TX, 16 for RXs)
- USB-A to Micro USB cable
- TX Rubber pad (4pcs)
- User’s manual

Warranty & Support

- Limited One-Year Warranty and Lifetime Product Support
